Note

This project is part of the DevOpsTheHardWay course.

Important

The project builds upon the work done in our previous AWS project. You have to complete the AWS project first in order to start this project.

The Polybot Service: Terraform Project

Background and goals

In the previous AWS project, you've provisioned a scalable, highly available and well-architected Polybot service using cloud resources.

This project focuses on Infrastructure as Code (IaC) techniques in order to automate the provisioning of the cloud resources for your Polybot service in different AWS regions.

Why is this good? Here are just three reasons among many...

• Your infrastructure configurations would be versioned as part of your git repo, allows you to track changes and revert to previous versions if needed.
• Let's say compliance regulations require to provision your service across 6 different regions on the globe. You'll be able to do it in a click of a mouse, while ensuring consistency between regions.
• You'll significantly improve your readiness to Disaster Recovery (RD).

Preliminaries

No need to fork this repo as it doesn't contain code resources. You can work on the same repo used in the previous AWS project.

Warning

This project involves working with multiple AWS services. Note that you are responsible for the costs of any resources you create. Proceed with caution and ensure that you understand the implications of provisioning resources using Terraform. Always double-check your Terraform configurations before applying changes, and use terraform destroy when necessary to tear down resources and avoid additional charges.

Let's get started...

Configuration files - structure and usage

Here is a general structure for the Terraform root module directory:

tf/
├── modules/
├───── polybot/                         # Module for polybot resources
│      ├── main.tf
│      ├── variables.tf
│      └── outputs.tf
├───── yolo5/                           # Module for yolo5 resources
│      ├── main.tf
│      ├── variables.tf
│      └── outputs.tf
├── main.tf                         # Main configuration file
├── outputs.tf
├── variables.tf
├── region.us-east-1.tfvars         # Values related for us-east-1 region
└── region.eu-central-1.tfvars      # Values related for eu-central-1 region

Once your work is completed, you should be able to provision (and destroy) the Polybot service as follows:

1. Select (or create of doesn't exist) the workspace in which you want to provision the infrastructure:

terraform workspace select us-east-1 || terraform workspace new us-east-1

2. Provision the service with region-specific values file and variables:

# Terraform will use the value from the environment variable TF_VAR_botToken for the botToken variable.
export TF_VAR_botToken="123456789:ABCDefghIJKLmnopQRStuvWXYZ1234567890"
terraform apply -var-file=region.us-east-1.tfvars

Wait for the service until it's operational...

3. When done, destroy all resources to avoid unnecessary costs.

terraform destroy -var-file=region.us-east-1.tfvars

General notes

• As the above configuration files structure suggests, the Polybot and Yolo5 microservice should be configured as separate Terraform Modules.

• Since Terraform can provision and destroy the same infrastructure consistently, avoid additional charges and don't keep your AWS resources existing for long time. Destroy them when you don't work on your project.

• Don't store sensitive data in the .tf or .tfvars files.

• Feel free to use other Terraform modules (e.g. for VPC, ASG, etc...).

• If you work properly, you should be able to provision your service in a new fresh AWS account that you have never seen before, in any arbitrary region! Thus, make sure that all of your service resources are managed by Terraform without exceptions. You shouldn't do any manual step to make it work.

  For example, you cannot rely on a dedicated AMI that you created beforehand which contains the application code and dependencies, as on a new AWS account, those AMI would not be available.

Manage state across multiple regions

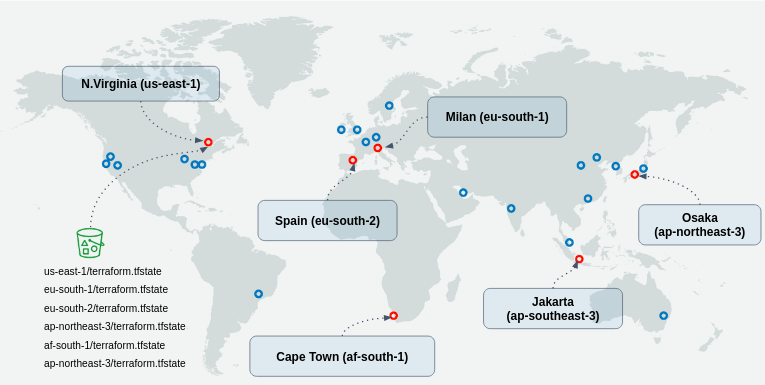

The below image demonstrates the Polybot Service deployed in 6 different regions. Each region has its own Telegram bot token and app URL, but resource-wise, the regions are identical, they are deployed using the same stack of resources in AWS. The different .tfstate files of all regions are stored in the same S3 bucket, located in one of the regions (us-east-1 in this case).

Choose one of your regions to store the .tfstate files for all workspaces in a dedicated S3 bucket backend.

Applying region-specific values per region

The region.REGION_CODE.tfvars files should contain region-related values. As mentioned above, once you want to apply the configuration for a given region, provide the corresponding .tfvars in the terraform apply command:

terraform apply -var-file=region.us-east-1.tfvars

All your .tf configuration files should be region-agnostic, which means, you have to avoid hardcoding specific region-related settings, such as AMIs, availability zones, etc...

To avoid large charges in AWS, test the service provisioning in 2 different regions only (and once it works, destroy it). Generalizing it to more regions should be as simple as creating the corresponding .tfvars file for the region, as well as generating a new Telegram token.

Deploy the Polybot and the Yolo5 apps in their EC2 instances

As you may know, in order for the service to be up and running, it's necessary not only to provision the underlying infrastructure but also to deploy the Polybot and Yolo5 apps within their respective EC2 instances.

Feel free to design your own solution, but you are highly encouraged to leverage the CI/CD pipeline developed in the previous AWS project for this purpose, which essentially used to automate the deployment of the services in their instances.

The workflow is as follows:

1. Terraform is used to provision the infrastructure (leaving the EC2 instances empty):

terraform apply ....

2. Then, trigger the CI/CD pipeline from previous project (with necessary adjustments) to deploy the initial app version onto the EC2 instances.

Integrate a simple CI/CD pipeline for Terraform

Similarly to the CI/CD pipelines used to deploy a new version of the service, we also want to automate the provisioning process of AWS resources done by Terraform.

When you change some of your .tf configuration files locally, then commit and push them, a semi-automated pipeline would provision the new infrastructure changes in AWS. By semi-automated we mean that the actual infrastructure provisioning would be triggered manually, since it's important to have a human approval step before making changes to the product infrastructure.

You're provided with three GitHub Actions workflows:

• .github/workflows/infra-provisioning-main.yaml - This is the main pipeline. It should be manually triggered from the GitHub Actions tab, while selecting the regions where you want to provision the infrastructure.
• .github/workflows/infra-provisioning-region.yaml - This workflow is automatically called by the main pipeline and provisions the infrastructure for a specific region.
• .github/workflows/infra-destroying.yaml - To be used to destroy your infrastructure.

Feel free to use these pipelines as a starting point for your work.

Test the pipeline by making changes to your Terraform configurations and observing the provisioning process in AWS.

Getting started template

Here is a good starting point for `tf/main.tf :

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = ">=5.0"
    }
  }

  backend "s3" {
    bucket = "YOUR_TFSTATE_BUCKET"
    key    = "path/to/my/key"
    region = "us-east-1"
  }

  required_version = ">= 1.7.0"
}

provider "aws" {
  region  = var.region
}

Good Luck
