| Original file line number | Diff line number | Diff line change |
|---|---|---|
| @@ -0,0 +1,281 @@ | ||
| # Administrator Configuration | ||
|
|
||
| ## Overview | ||
|
|
||
| After enabling the email plugin, administrators need to complete some configurations before regular users can connect their email accounts to NocoBase. | ||
|
|
||
| These configurations primarily involve obtaining settings from the email provider for API authentication. The main business flow is as follows: | ||
|
|
||
| #### Business Flow | ||
|
|
||
| **Administrator** | ||
| 1. Visit the provider's platform and create an application. | ||
| 2. Configure application-related information. | ||
| 3. Enable Mail API permissions and OAuth. | ||
| 4. Enter the obtained information into NocoBase. | ||
|
|
||
| **NocoBase** | ||
| 1. Use the application parameters to call the provider's Mail API. | ||
| 2. Retrieve email information when users authorize login. | ||
| 3. Provide email-related features. | ||
|
|
||
| **Regular Users** | ||
| 1. Authorize their email accounts in NocoBase. | ||
|
|
||
| ## Plugin Configuration | ||
|
|
||
| ### Enabling the Email Plugin | ||
|
|
||
| 1. Navigate to the Plugin Management page. | ||
| 2. Enable the plugin. | ||
|
|
||
| ### Email Provider Configuration | ||
|
|
||
| After enabling the email plugin, you can configure the email provider settings. Currently, both Google and Microsoft emails are supported. Go to **"Settings" -> "Email Settings"** to access the configuration page. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| Each provider requires **Client ID** and **Client Secret**. Below are detailed steps to obtain these parameters. | ||
|
|
||
| ## Google Configuration | ||
|
|
||
| ### Prerequisites | ||
| 1. Ensure NocoBase is deployed on a server that can access Google services. The backend will call the Google API. | ||
|
|
||
| ### Account Registration | ||
| 1. Visit [Google Cloud Console](https://console.cloud.google.com/welcome). | ||
| 2. Agree to the terms on the first visit. | ||
|
|
||
|  | ||
|
|
||
| ### Creating an App | ||
| 1. Click **"Select a project"** at the top. | ||
|
|
||
|  | ||
|
|
||
| 2. In the pop-up, click **"NEW PROJECT"**. | ||
|
|
||
|  | ||
|
|
||
| 3. Enter project details. | ||
|
|
||
|  | ||
|
|
||
| 4. Once created, select the project. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| ### Enabling Gmail API | ||
| 1. Click **"APIs & Services"**. | ||
|
|
||
|  | ||
|
|
||
| 2. Go to the **APIs & Services** panel. | ||
|
|
||
|  | ||
|
|
||
| 3. Search for **"mail"**. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| 4. Click **"ENABLE"** to activate Gmail API. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| ### Configuring OAuth Consent Screen | ||
| 1. Click **"OAuth consent screen"** in the left menu. | ||
|
|
||
|  | ||
|
|
||
| 2. Choose **"External"**. | ||
|
|
||
|  | ||
|
|
||
| 3. Enter project information for the authorization screen and save. | ||
|
|
||
|  | ||
|
|
||
| 4. Fill in the **Developer contact information** and proceed. | ||
|
|
||
|  | ||
|
|
||
| 5. Continue through the prompts. | ||
|
|
||
|  | ||
|
|
||
| 6. Add test users for pre-release testing. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| 7. click to continue | ||
|
|
||
|  | ||
|
|
||
| 8. Review the overview and return to the control panel. | ||
|
|
||
|  | ||
|
|
||
| ### Creating Credentials | ||
| 1. Click **"Credentials"** in the left menu. | ||
|
|
||
|  | ||
|
|
||
| 2. Click **"CREATE CREDENTIALS"** and choose **"OAuth client ID"**. | ||
|
|
||
|  | ||
|
|
||
| 3. Choose **"Web application"**. | ||
|
|
||
|  | ||
|
|
||
| 4. Enter application details. | ||
|
|
||
|  | ||
|
|
||
| 5. Provide the final deployment domain (e.g., a test address for NocoBase). | ||
|
|
||
|  | ||
|
|
||
| 6. Add the authorized callback URL as `domain + "/admin/settings/mail/oauth2"`. Example: `https://pr-1-mail.test.nocobase.com/admin/settings/mail/oauth2`. | ||
|
|
||
|  | ||
|
|
||
| 7. Create and view OAuth details. | ||
|
|
||
|  | ||
|
|
||
| 8. Copy **Client ID** and **Client Secret** and paste them into the email configuration page. | ||
|
|
||
|  | ||
|
|
||
| 9. Save to complete the configuration. | ||
|
|
||
| ### Publishing the App | ||
| 1. Go to **"OAuth consent screen"**. | ||
|
|
||
|  | ||
|
|
||

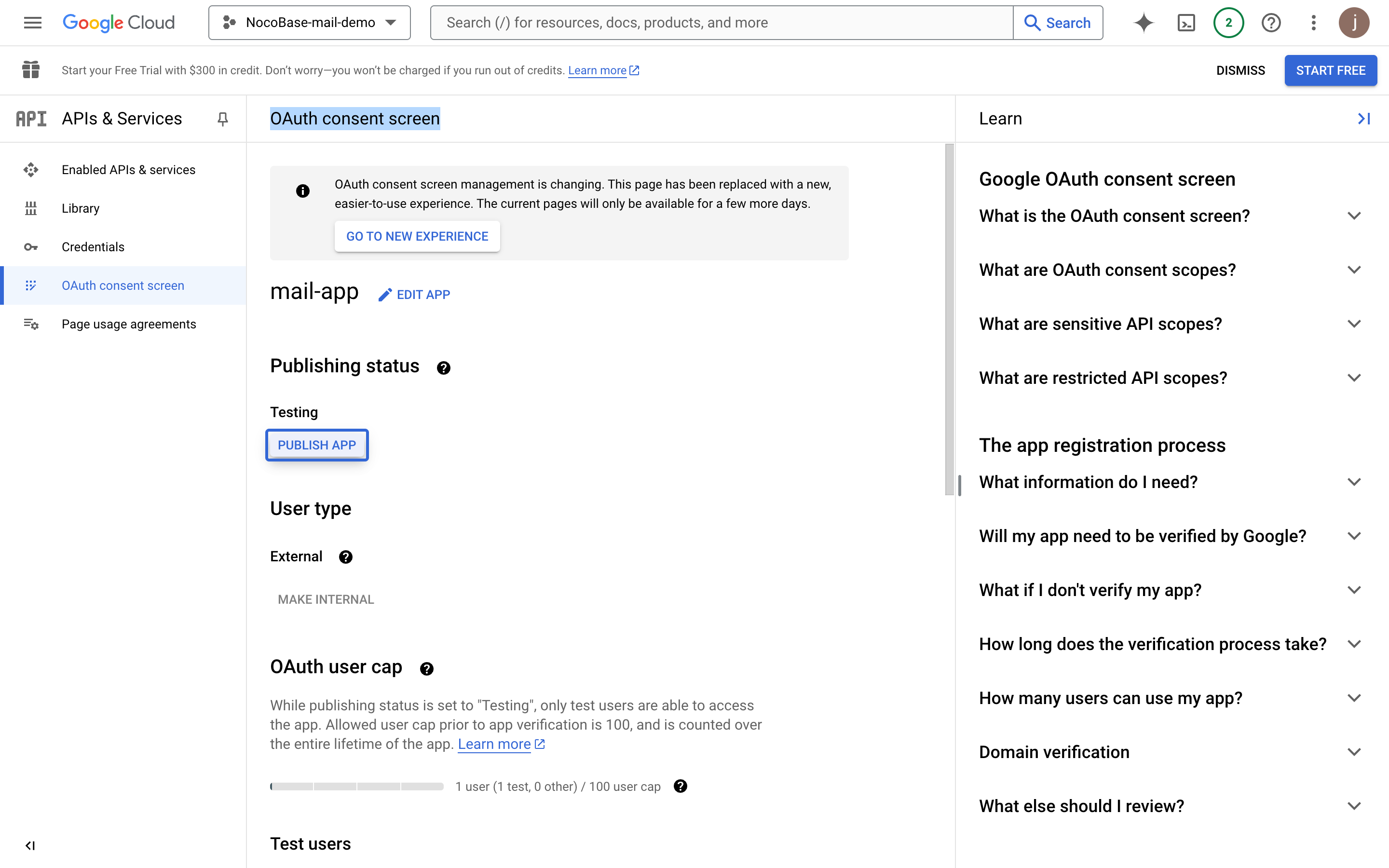

| 2. Click **"PUBLISH APP"**. | ||
|
|
||
|  | ||
|
|
||

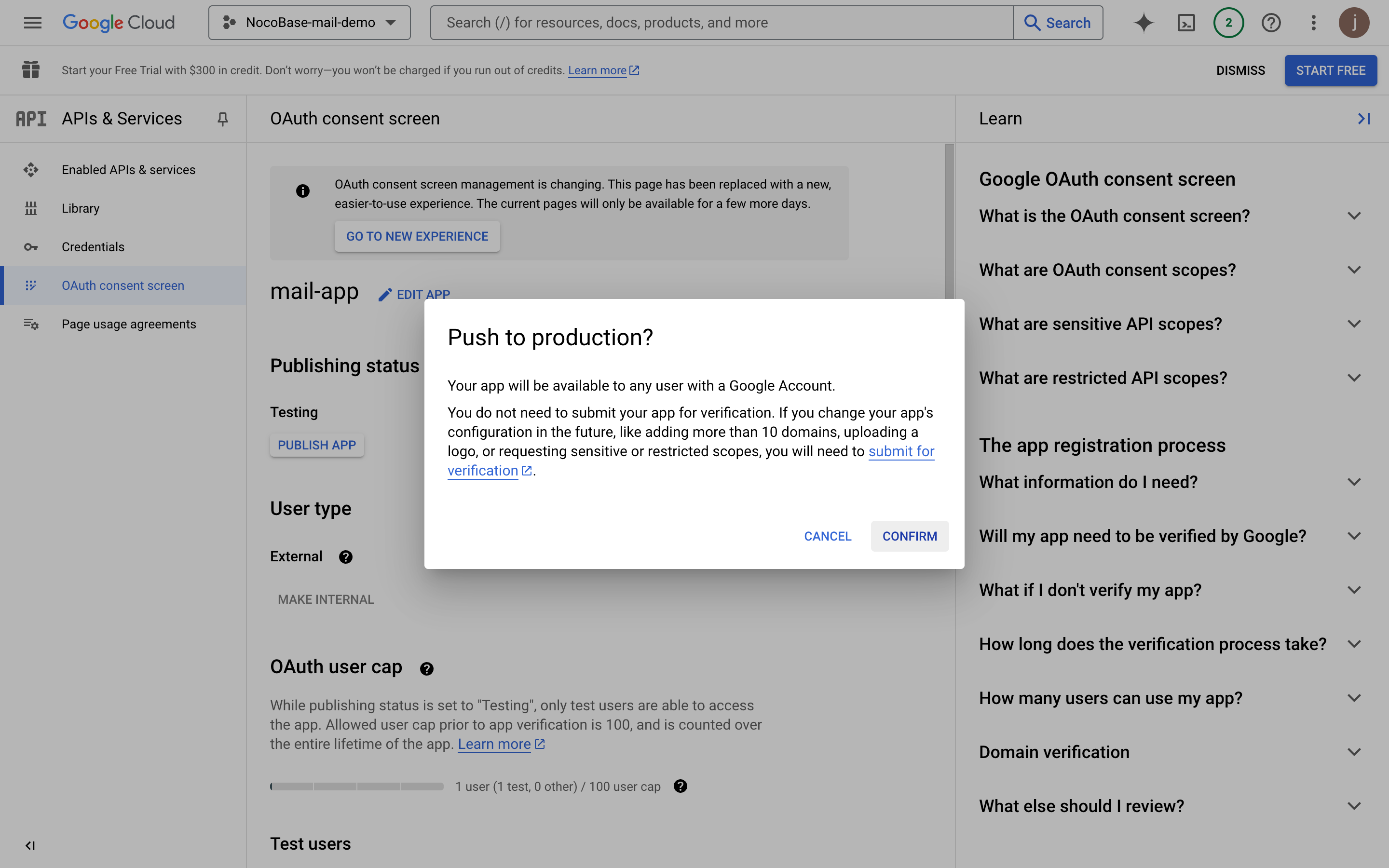

| 3. Confirm and publish. | ||
|
|
||
|  | ||
|
|
||
| ## Microsoft Configuration | ||
|
|
||
| ### Register an Account | ||
|
|
||
| 1. Visit https://azure.microsoft.com/en-us/pricing/purchase-options/azure-account. | ||
|
|
||
| 2. Log in to your Microsoft account. | ||
|
|
||
|  | ||
|
|
||
| ### Create a Tenant | ||
|
|
||
| 1. Visit https://azure.microsoft.com/zh-cn/pricing/purchase-options/azure-account?icid=azurefreeaccount and log in to your account. | ||
|
|
||
| 2. Fill in the basic information and complete the verification. | ||
|
|
||
|  | ||
|
|
||
| 3. Provide additional information and proceed. | ||
|
|
||
|  | ||
|
|
||
| 4. Fill in credit card details (optional at this stage). | ||
|
|
||
|  | ||
|
|
||
| ### Obtain the Client ID | ||
|
|
||
| 1. From the top menu, select **"Microsoft Entra ID"**. | ||
|
|
||
|  | ||
|
|
||
| 2. On the left sidebar, click **"App registrations"**. | ||
|
|
||
|  | ||
|
|
||
| 3. Click **"New registration"** at the top. | ||
|
|
||
|  | ||
|
|
||
| 4. Enter the required details and submit. | ||
|
|
||
| - You can choose any name. | ||
| - Select account types as shown in the example below. | ||
| - The **Redirect URI** field can be left empty for now. | ||
|
|
||
|  | ||
|
|
||
| 5. Retrieve the **Client ID**. | ||
|
|
||
|  | ||
|
|
||
| ### API Authorization | ||
|
|
||
| 1. Open the **"API permissions"** menu on the right sidebar. | ||
|
|
||
|  | ||
|
|
||
| 2. Click **"Add a permission"**. | ||
|
|
||
|  | ||
|
|
||
| 3. Select **"Microsoft Graph"**. | ||
|
|
||
|  | ||
|
|
||
|  | ||
|
|
||
| 4. Search for and add the following permissions. The final configuration should include: | ||
|
|
||
| 1. `"email"` | ||
| 2. `"offline_access"` | ||
| 3. `"IMAP.AccessAsUser.All"` | ||
| 4. `"SMTP.Send"` | ||
| 5. `"offline_access"` | ||
| 6. `"User.Read"` (default) | ||
|
|
||
|  | ||
|
|
||
| ### Obtain a Secret Key | ||
|
|
||
| 1. Open the **"Certificates & secrets"** menu on the left. | ||
|
|
||
|  | ||
|
|
||
| 2. Click the **"New client secret"** button. | ||
|
|
||
|  | ||
|
|
||
| 3. Provide a description and set an expiration date, then create the secret. | ||
|
|
||
|  | ||
|
|
||
| 4. Retrieve the **Secret ID**. | ||
|
|
||
|  | ||
|
|
||
| 5. Copy both the **Client ID** and **Client Secret**, then fill them in on the email configuration page. | ||
|
|
||
|  | ||
|
|
||
|
|
||
| ## FAQ | ||
|
|
||
| **Q:** Why can’t emails be received after logging in with a Microsoft account? | ||
| **A:** Currently, only Outlook and Gmail accounts are supported. Microsoft and Google accounts are not yet supported. For more details, refer to [this discussion](https://answers.microsoft.com/zh-hans/outlook_com/forum/all/%E7%8E%B0%E6%9C%89%E5%BE%AE%E8%BD%AF%E8%B4%A6/dba12dda-a7c7-4346-8263-53f4a6d9dc68). |
